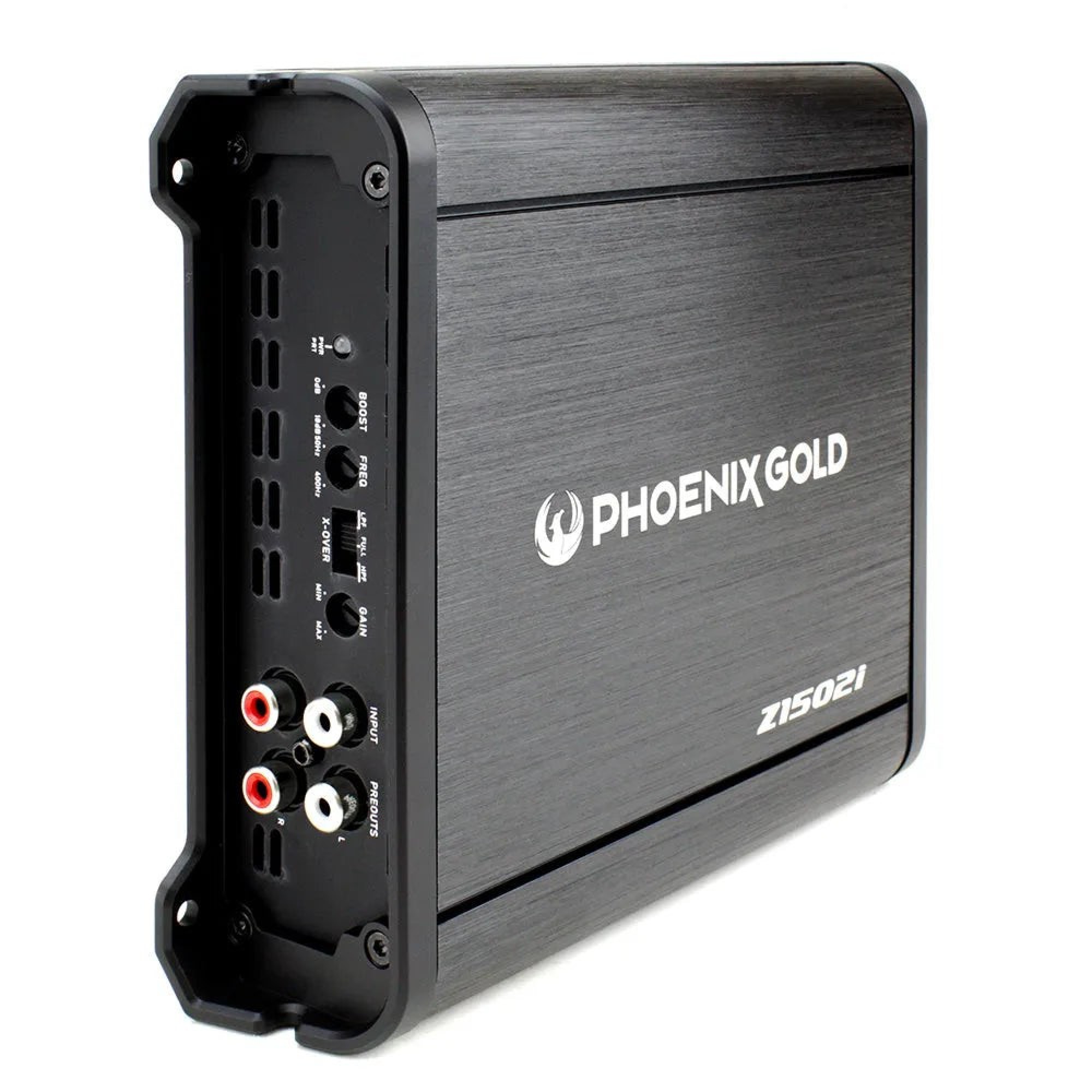

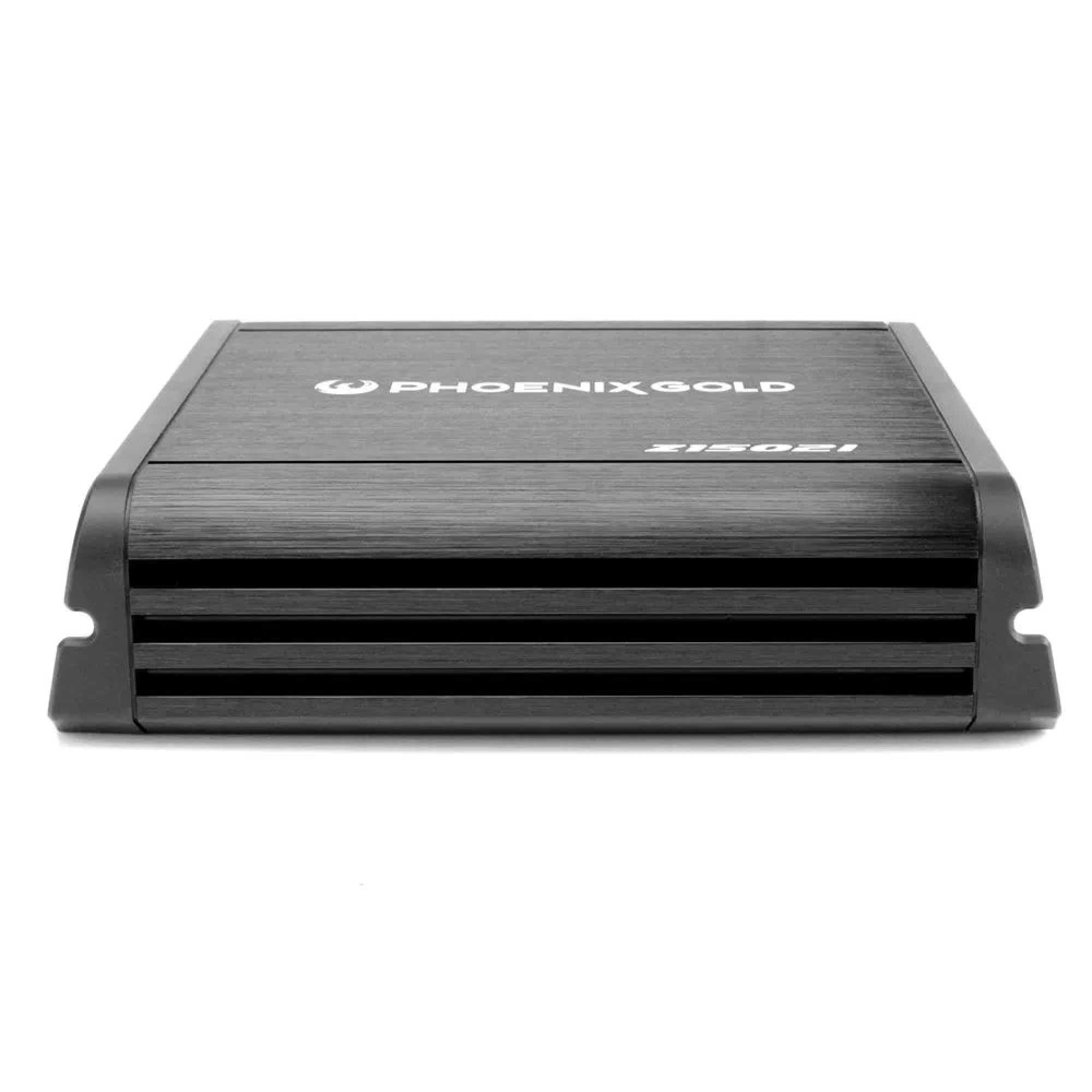

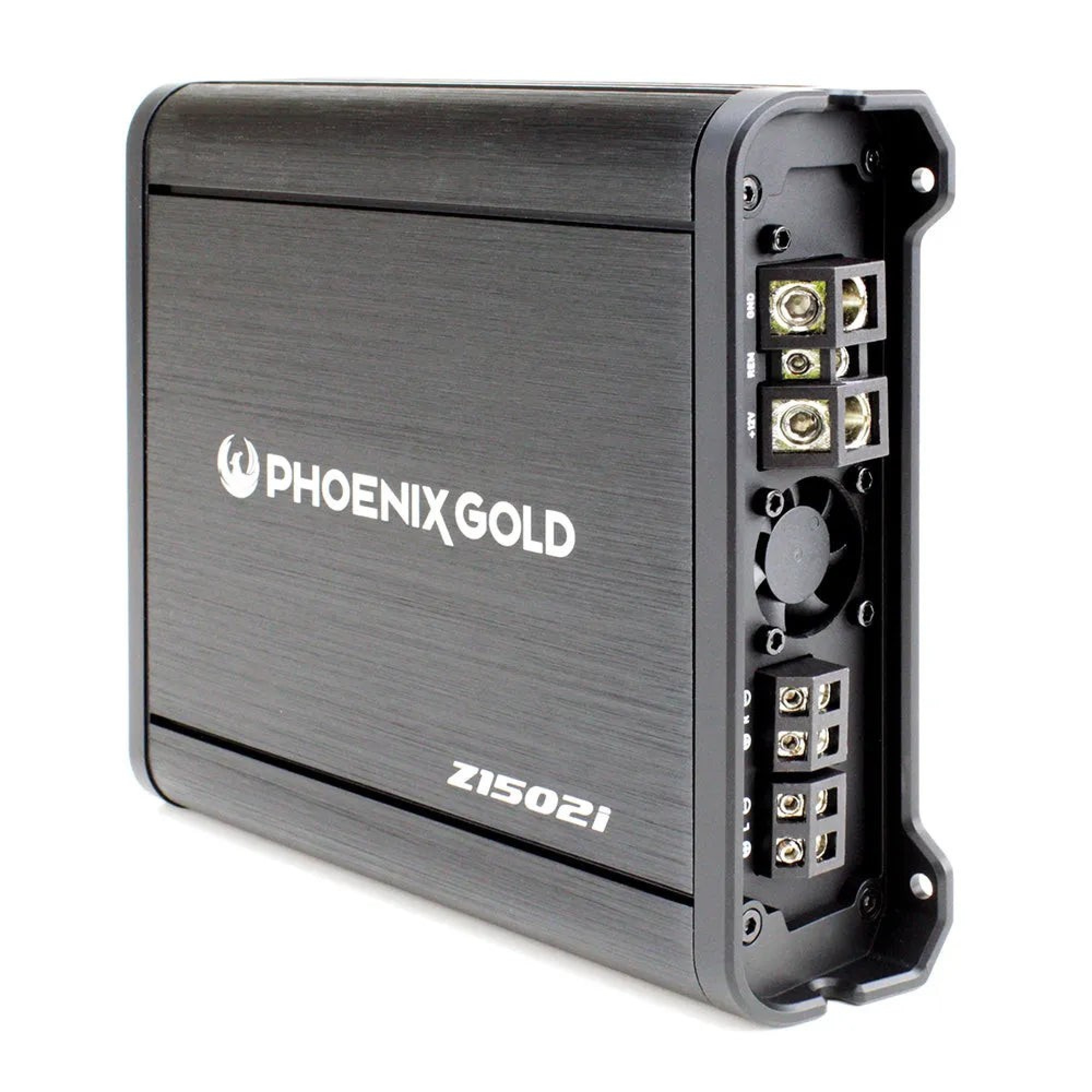

PHOENIX GOLD Z1502I, AUTOMOBILINIS STIPRINTUVAS 400W

• Galia: 400W.
• Dažnių juosta: 20Hz – 20kHz.
• Signalo ir triukšmo santykis: > 96 dB.

APRAŠYMAS

The Z1502i features an integrated cooling fan that regulates amplifier temperature for sustained performance, the amp also features an OEM connection compatible with aftermarket or original source units, high level auto turn on which powers on the Z1502i when an audio signal is supplied. A 4 way protection circuit prevents damage caused be Thermal / Reversed power / Polarity / Low voltage / Short circuiting and a heavy duty connector block provides maximum current supply.

The Z1502i is an impressive 400W amplifier that features an integrated cooling fan that regulates amplifier temperature for sustained performance, the amp also features an OEM connection compatible with aftermarket or original source units, high level auto turn on which powers on the Z1502i when an audio signal is supplied. A 4 way protection circuit prevents damage caused be Thermal / Reversed power / Polarity / Low voltage / Short circuiting and a heavy duty connector block provides maximum current supply.

TECHNINIAI DUOMENYS

SPECIFIKACIJOS

• Power (MAX) 400W
• Power Ratings (RMS)
• 70W x 2 @ 4Ohm
• 100W x 2 @ 2Ohm
• 200W x 1 @ 4Ohm bridged
• Frequency Response: 20Hz – 20kHz
• Signal to Noise Ratio: >96dB
• High & Low Pass Crossover 6dB per Octave
• Crossover Range: 50Hz – 400Hz
• Bass Boost @ 45Hz 0 to +18dB
• Low – High Level Input Range 0.2V to 10V
• Minimum Load Impedance 2ohm stereo & 4ohm bridged
• Dimensions (LxWxH): 184 x 160 x 48mm

DOKUMENTAI

INSTRUKCIJOS

User Manual (EN).
