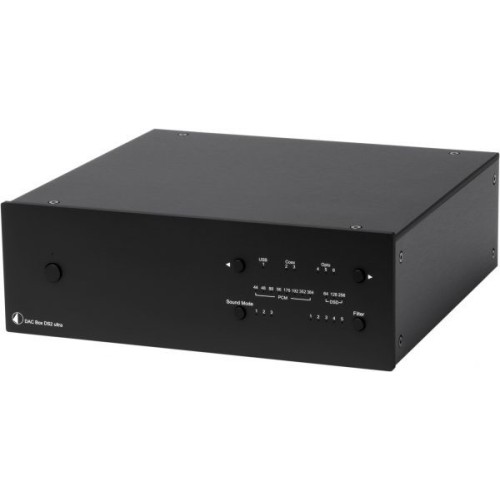

PRO-JECT DAC BOX DS2 ULTRA SKAITMENINIS/ANALOGINIS KONVERTERIS OPTICAL (TOSLINK®) DSD64, DSD128 IR DSD256 PALAIKYMAS
- Gamintojas: PRO-JECT
- Kategorijos: DAC KEITIKLIAI GARSO STIPRINTUVAI BEI GROTUVAI NAMAMS NAMŲ GARSO APARATŪRA
-
649.00€
- Kaina be PVM: 536.36€
Aukštos klasės Analoginis/Skaitmeninis konverteris su DSD ir USB 2.0
DAC Box DS2 ultra – state-of-the-art audio converter!
The advanced DAC Box DS2 ultra is an universal and very flexible D/A converter of the highest class. It offers full DSD256 support and upsampling of all input signals to 768kHz from USB, coaxial and optical inputs. This realizes high-resolution sound playback with a rich sound field and bass representation with less distortion.
Due to its class-leading audio performance DAC Box DS2 ultra is an ultimate high end bargain!
Apdovanojimai
Savybės
- Top grade AK4490 D/A chip (32-bit PCM 768kHz / DSD256)
- 6 Inputs: 1x USB, 3x optical (TOSlink®), 2x coax (S/PDIF)
- Up to 32bit/768kHz asynchronous USB (XMOS technology)
- DSD64, DSD128 & DSD256 (DSD over PCM)
- Audio Class 2 (USB 2.0 High Speed) driver for Windows included
- Up to 24bit/192kHz for optical & coax inputs
- 5 selectable digital filter characteristics
- 3 selectable sound modes
- High-end ultra low phase oscillator with superior noise rejection
- RCA line level solid-state analogue output stage
- Ultra linear & ultra low noise circuitry
- Separate power supplies for every stage with advanced filter technology
- Upgradeable with optional linear power supply

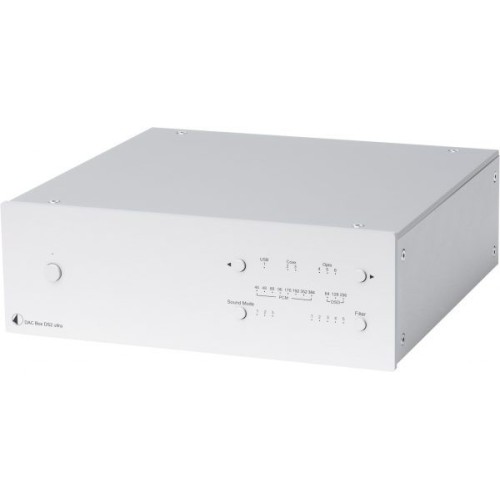

- Full metal casing in silver or black

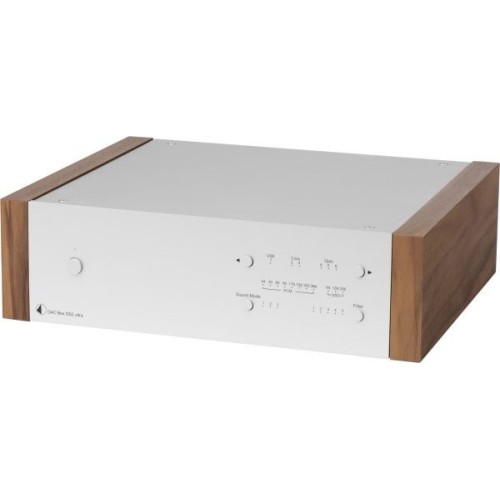

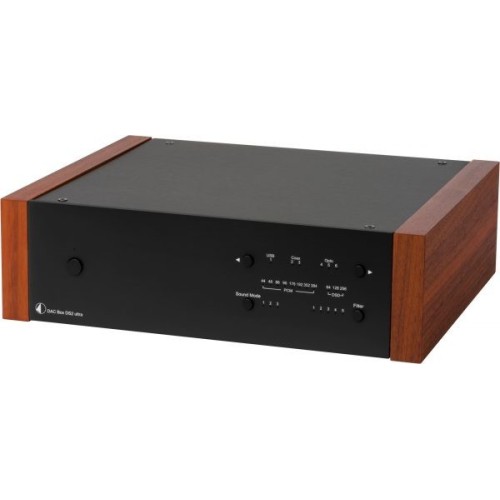

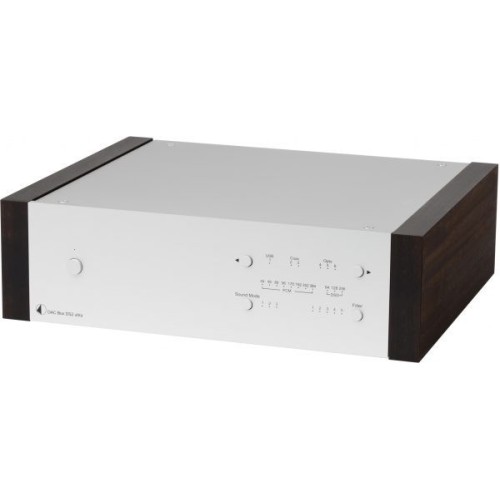

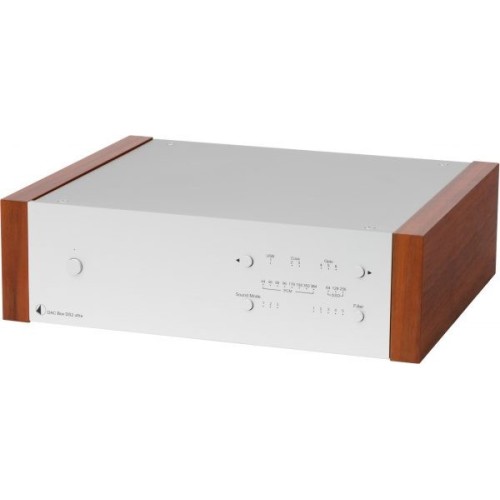

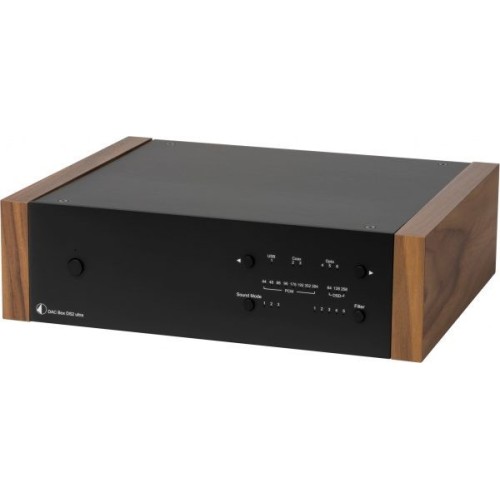

- Optional with wooden side panels (rosewood, walnut, eucalyptus)
Specifikacijos
| D/A-converter | AK4490 32-bit PCM 768kHz / DSD256 |
| Sampling rate converter | AK4137EQ upsampling to 768kHz |
| Samplingrates | USB: up to 32bit/768kHz, DSD256 (DoP) |
| Coaxial: up to 24bit/192kHz | |
| Optical: up to 24bit/192kHz | |
| DSD-support | DSD64, DSD128 and DSD256 |
| Filter settings | 5 different selectable on front |
| Digital inputs | USB B |
| 3 x Optical (TOSlink®) | |
| 2 x Coaxial (S/PDIF) | |
| Frequency response | 20Hz - 50kHz (+0/-1dB) |
| Analogue output | RCA/Cinch (Line) |
| Output voltage | 2.2 Veff (switchable +6 dB gain gives 4.4 Veff ) |
| Digital output | Optical (TOSlink®) |
| THD | 0.00085% |
| Crosstalk | -117 dB (10kHz@0dB) |
| Signal to Noise Ratio | 113 dB (20Hz - 20kHz) |
| Power consumption | <1 Watt standby, 600mA max |
| Power supply | 18V/1000mA DC (included) |
| Dimensions W x H x D | 206 x 71 x 220 mm (Alu), incl. sockets |
| 240 x 72 x 220 mm (Wood), incl. sockets | |
| Weight | 1410 g (Alu), without power supply |
| 1880 g (Wood), without power supply |
