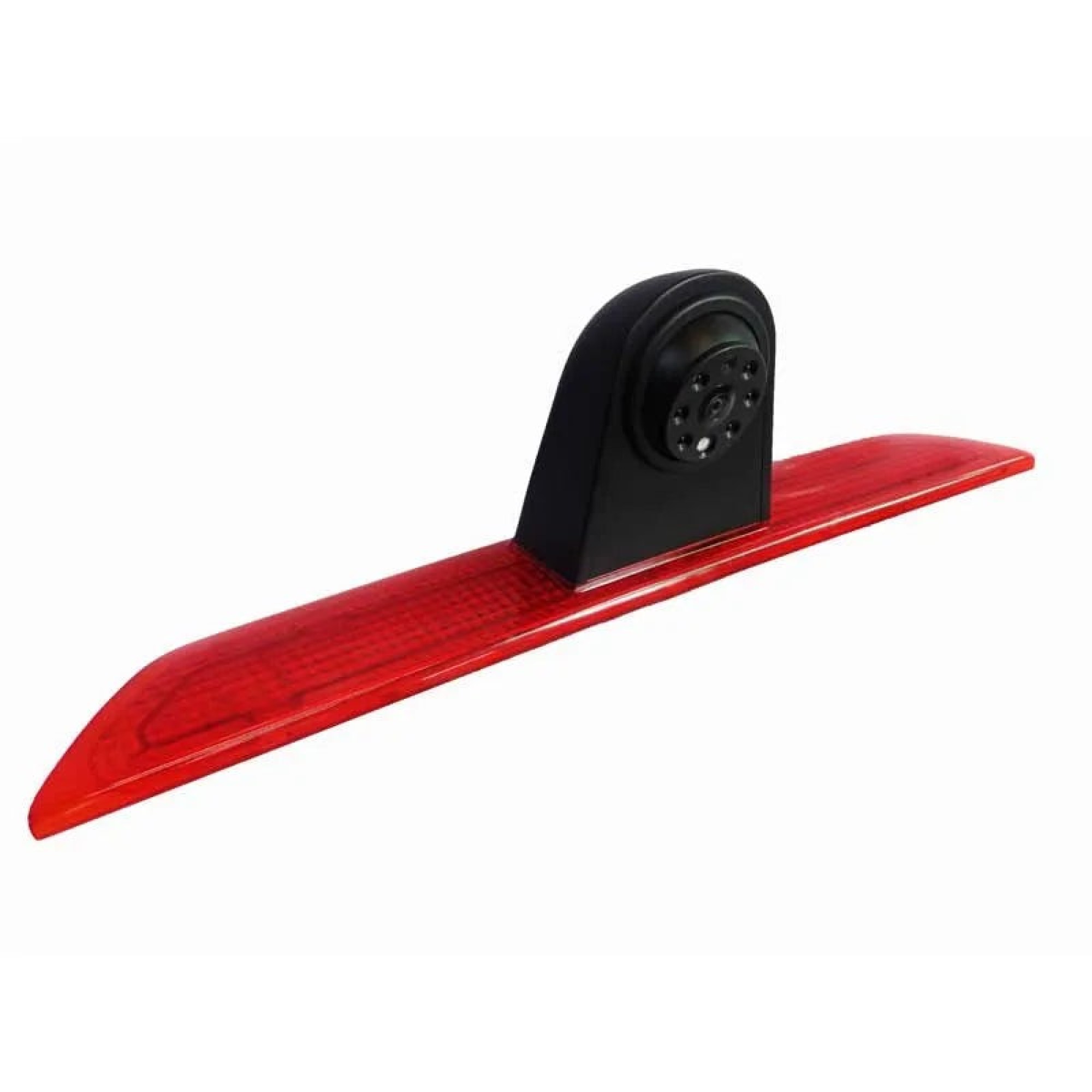

RVC CAM-E-TRAN CMOS 170°, GALINĖ KAMERA

Galinė kamera kamera įmontuota į stabdžių žibintą skirta komerciniam transportui. Tinka Ford Transit 7 kartos nuo 2014 metų.

• Sensorius: 1/4inch CMOS NTSC.
• Atparumo standartas IP 68.
• Rezoliucija: 648 x 488 px.
• Kabelio iligis: 10 m.

APRAŠYMAS

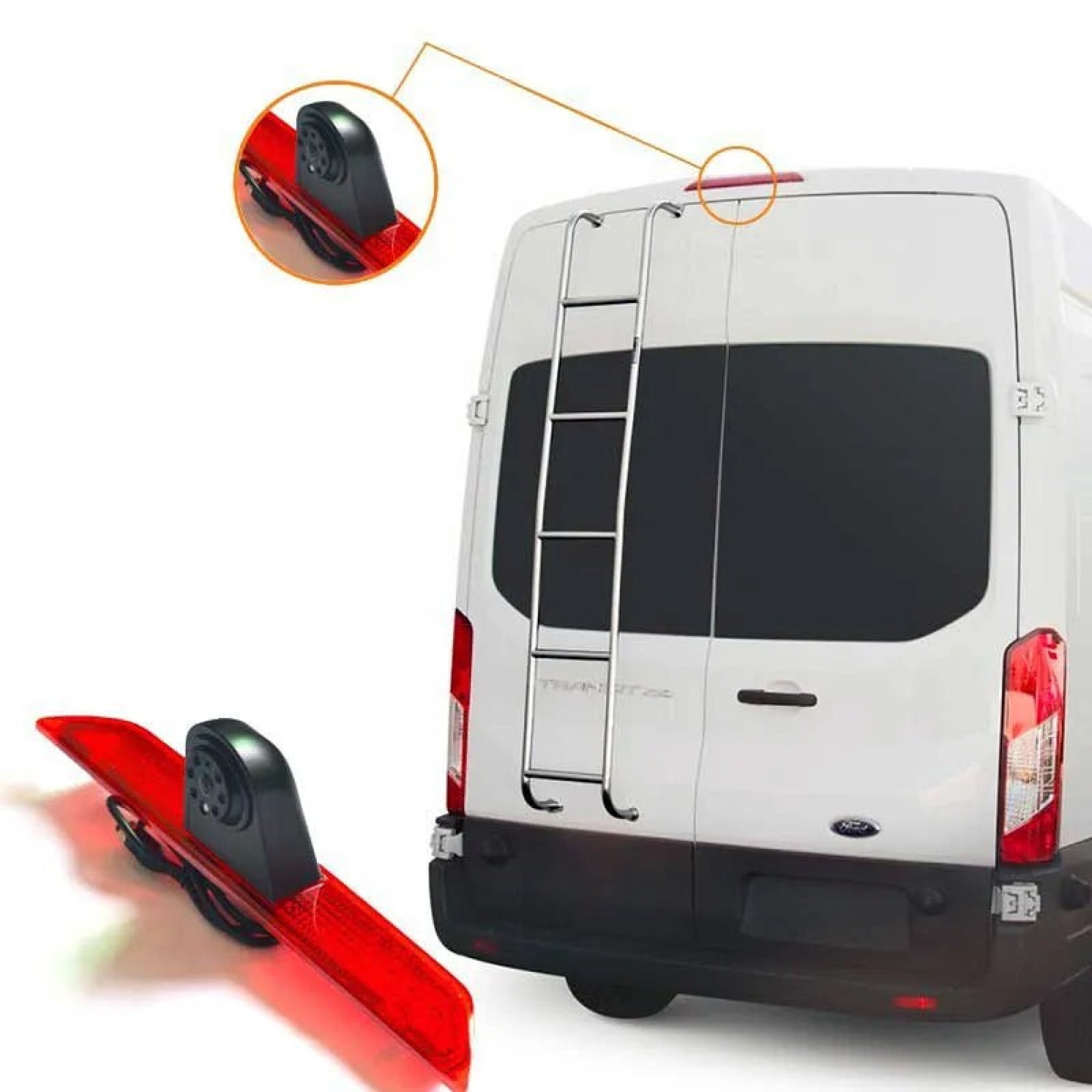

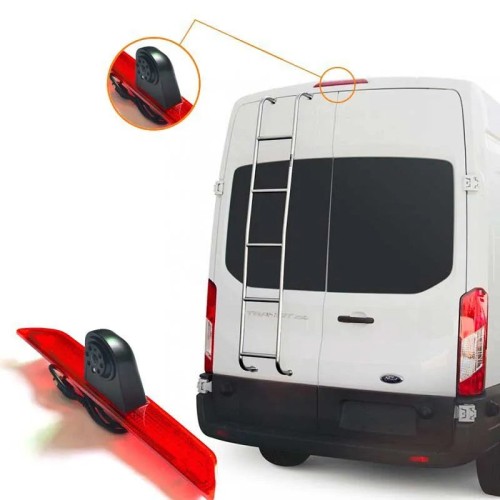

Vehicle-specific exchange brake light illumination-glass with rear-view camera. Integrated IR-lighting for sufficient light in the dark. Easy assembling by replacing the factory brake light illumination-glass. Professional connector cable with enough length and automotive plug connection. Easy to lay the cable due to a small cable diameter.

TECHNINIAI DUOMENYS

TECHNINIAI DUOMENYS

• • 1/4inch CMOS NTSC sensor
  • Resolution 648 x 488 pixel (580 TV lines)
  • 0 LUX min illumination (IR on)
  • 8 IR night vision LED
  • Angle diagonal 170°, horizontal 120°
  • Vertical camera adjustability 20°
  • Mirrored image (fixed)
  • Parking guide lines, optional switchable
  • Protection class IP68
  • Black camera
  • Integrated microphone

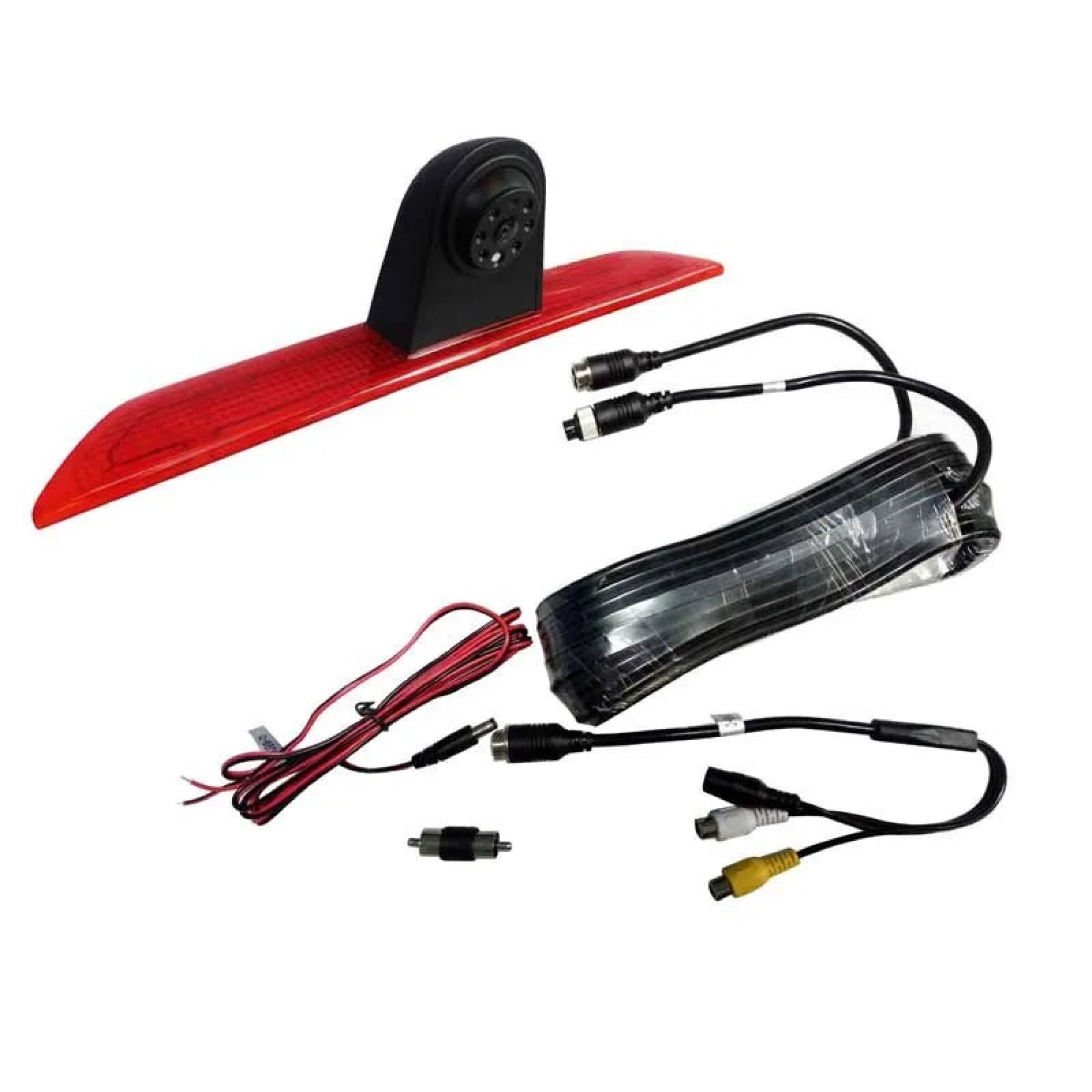

  • 0.8m camera cable with 4pin-KO system-female connector (diameter 5.9mm)
  • 10m extension cable (4pin-KO)
  • System-connector cable 4pin-KO with RCA connector




  ---

  Compatibility

  Brand	Model
  Ford	Transit Bus 7th generation from manufacture years 2014





  ---

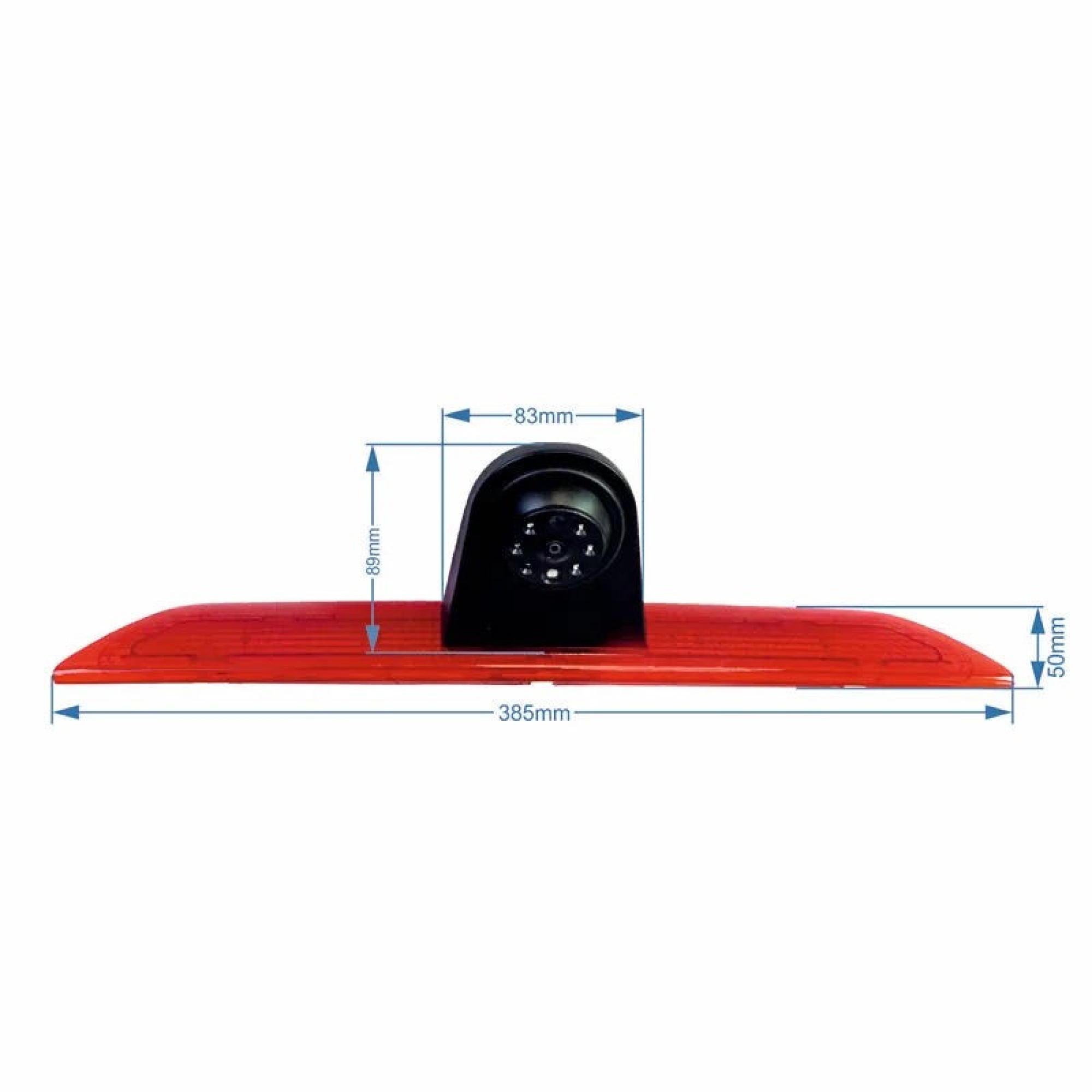

  Dimensions

  Brake light illumination-glass	385 x 50mm (W x H)
  Overhang length camera (from brake light)	89mm




  NOTICE: Please make sure to check if size of the camera fits to the vehicle!





  ---

  Specifications

  Operating voltage	12V DC (9~16V)
  Current consumption	max. 150mA
  Operating temperature	-30°C to +70°C
