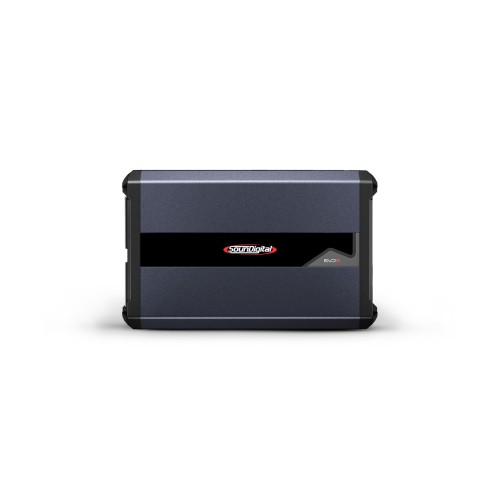

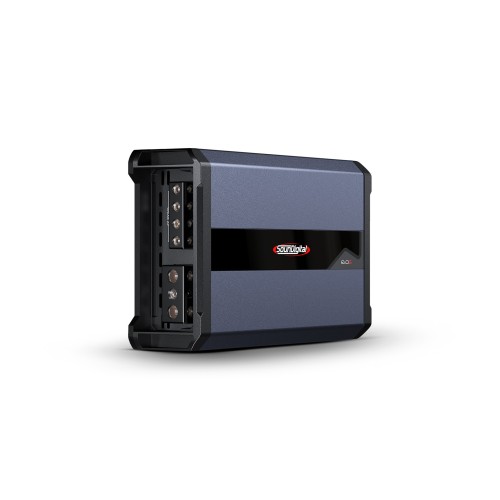

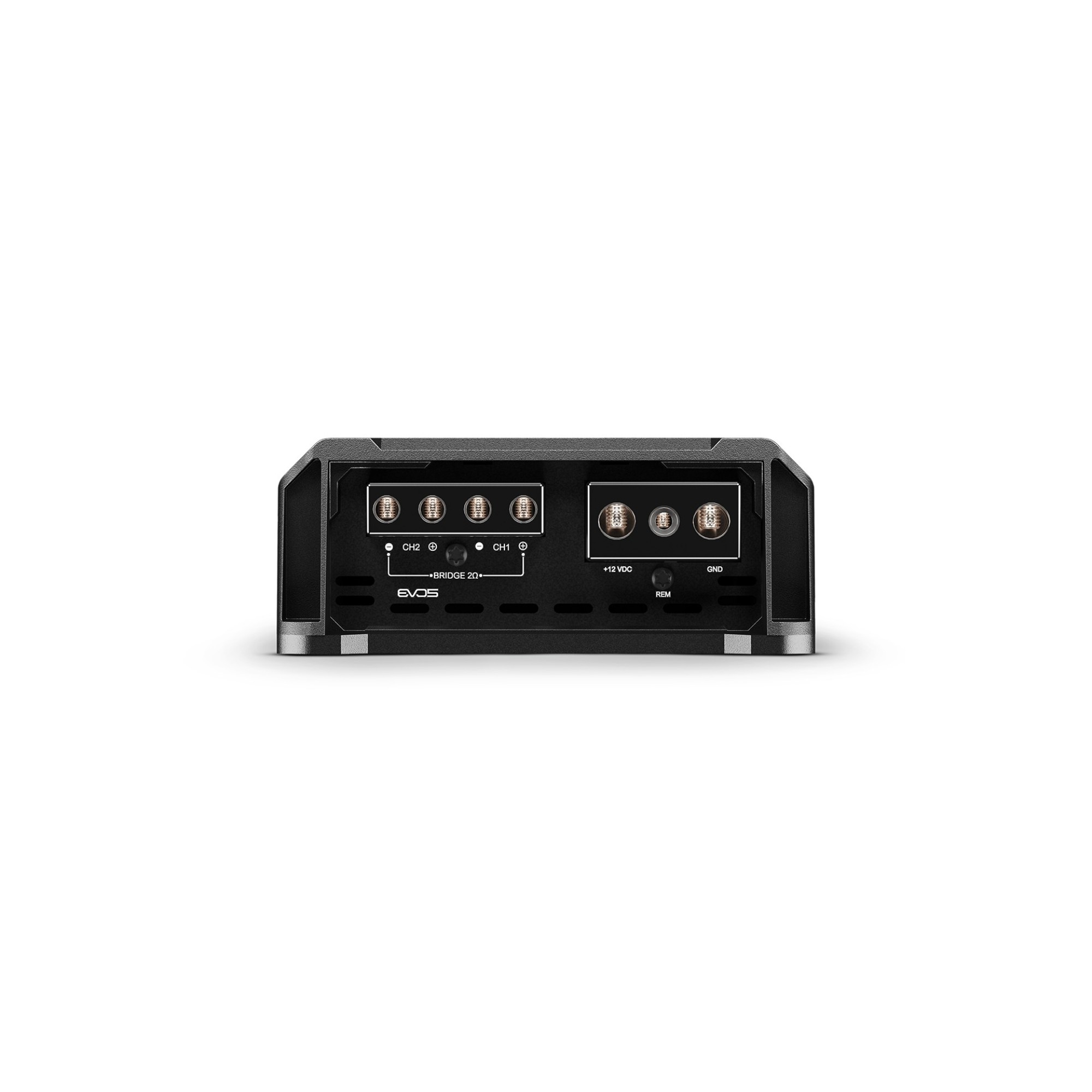

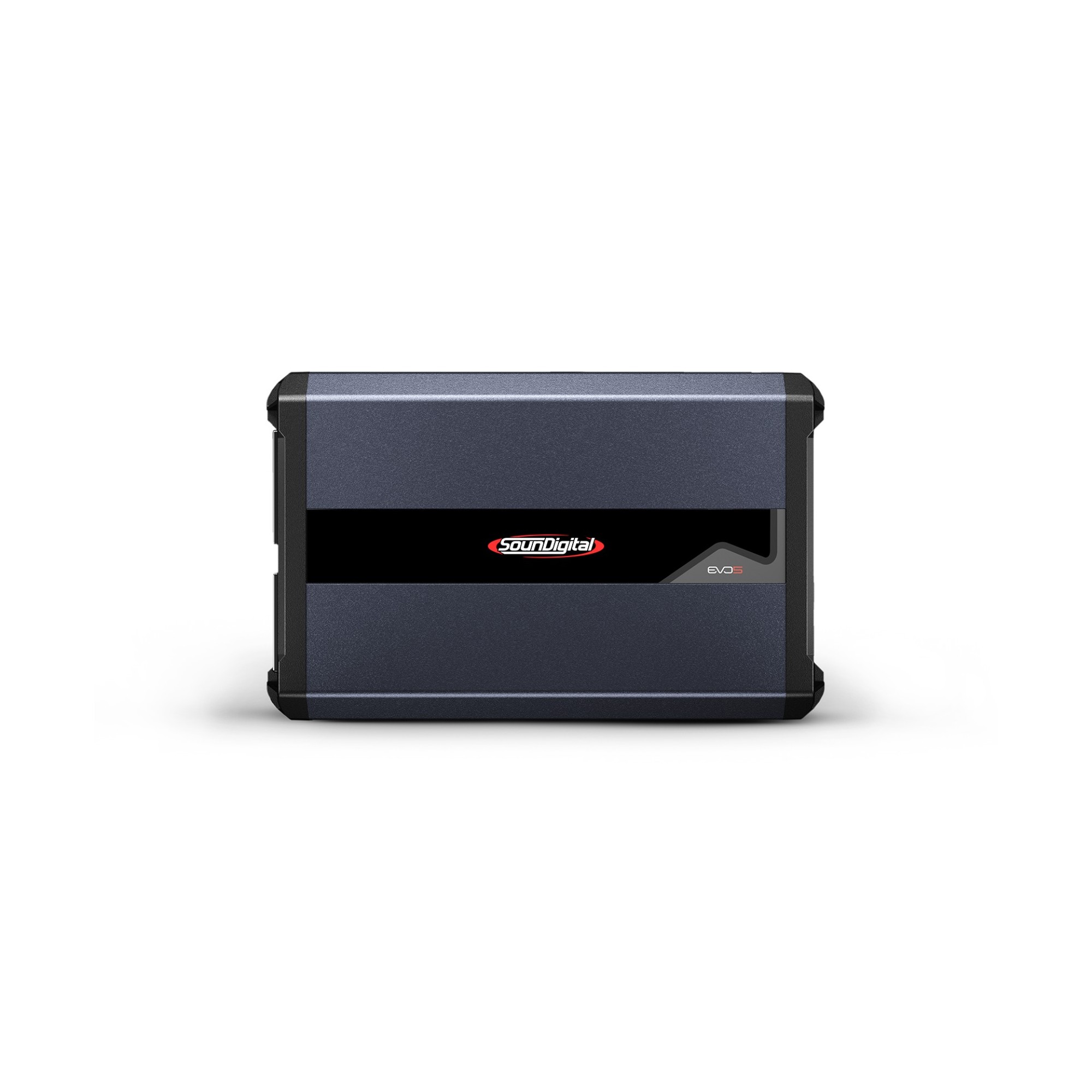

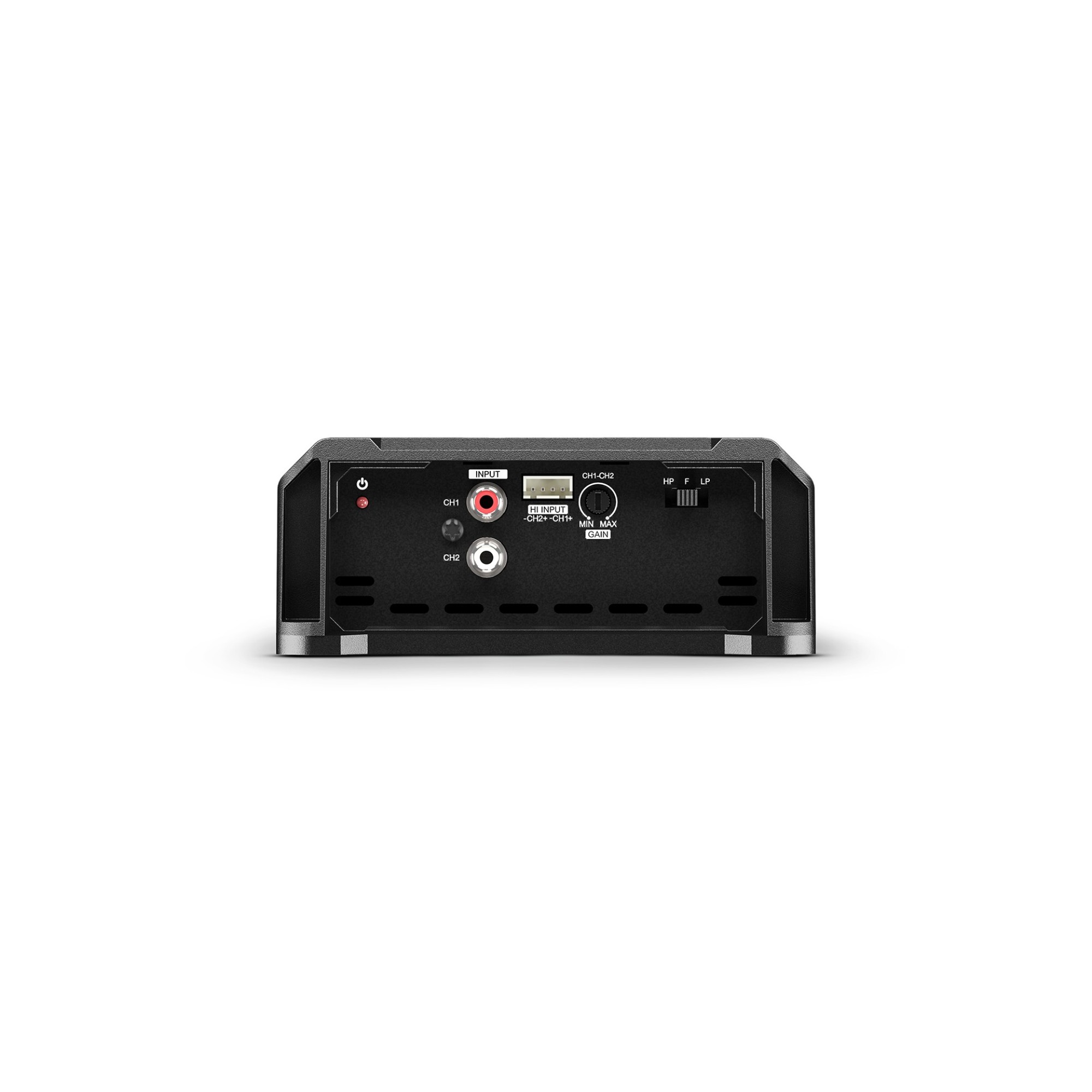

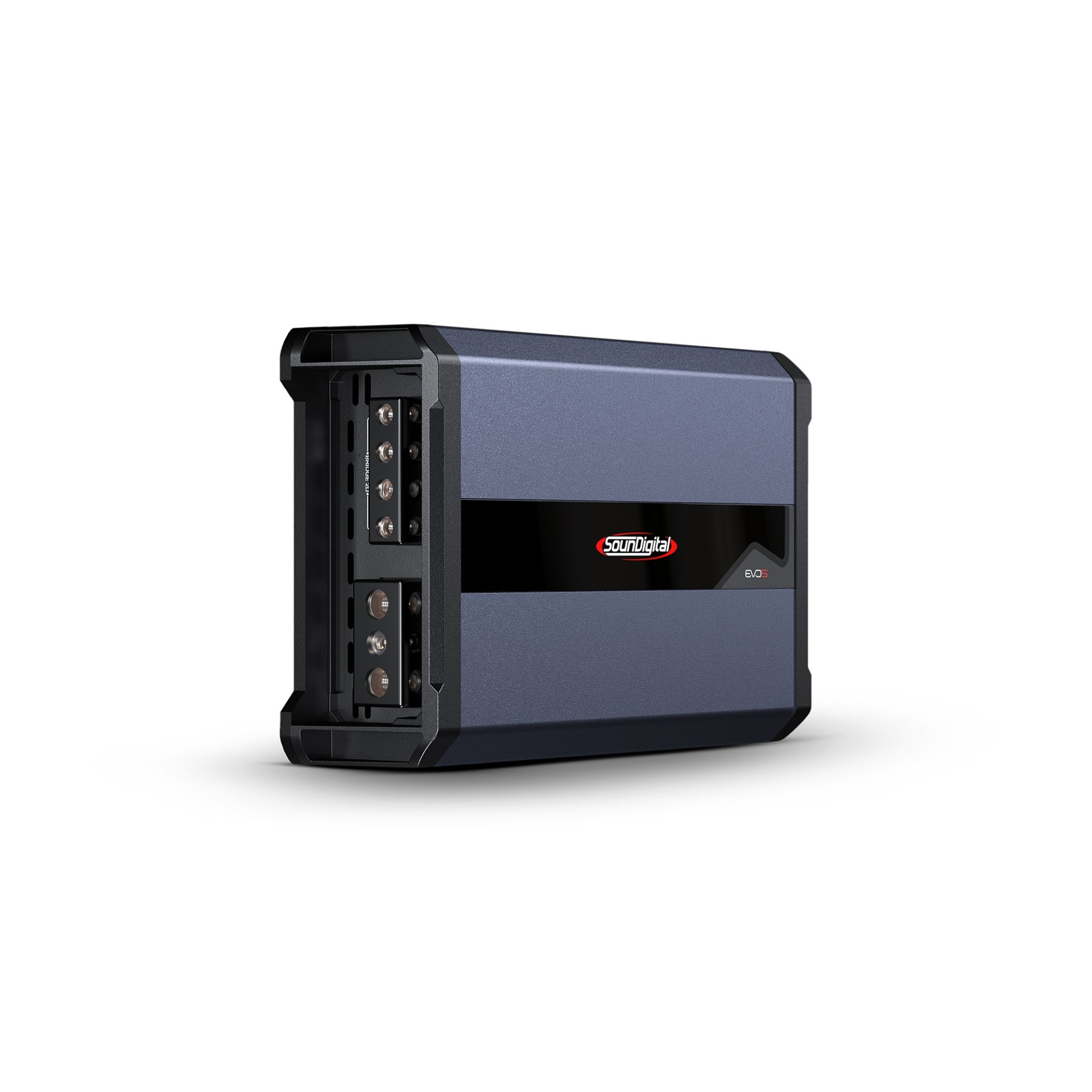

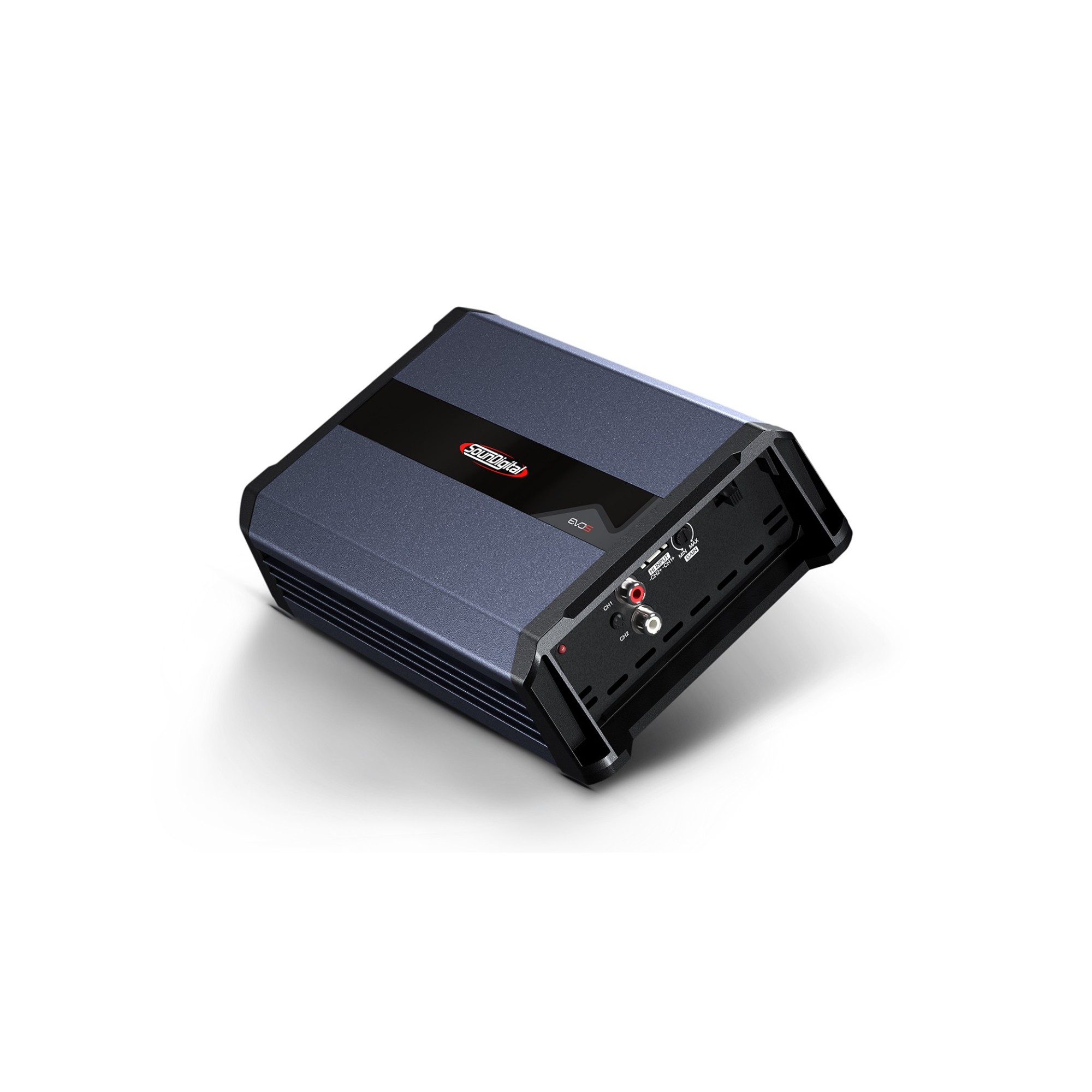

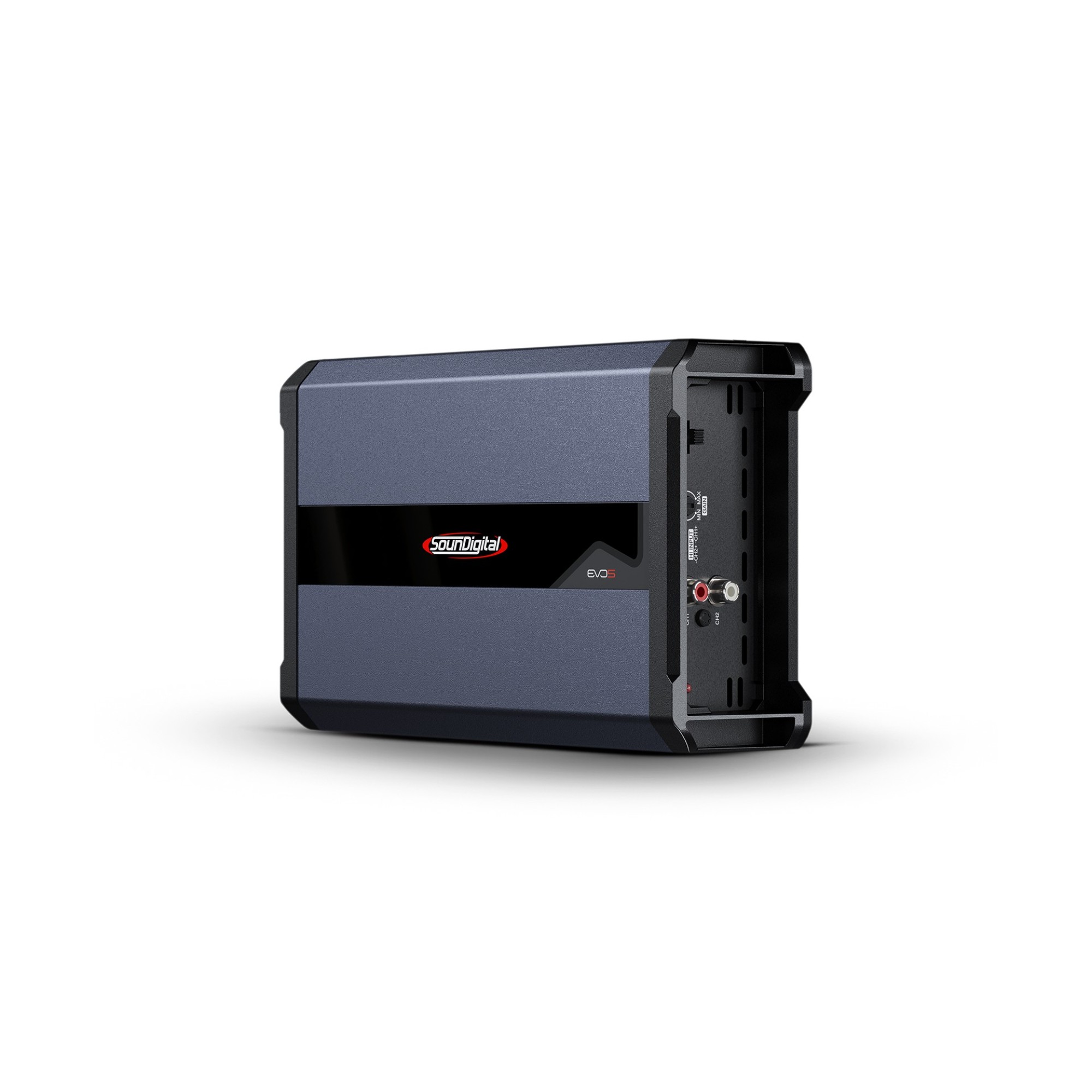

SOUNDIGITAL SD2000.2 EVO 5.0 - 4 OHM

2000.4 EVO 5 yra kompaktiškas, modernus stiprintuvas, kuris suteikia 2000W RMS galios, paskirstytos per 4 kanalus. Stiprintuvas turi išskirtines ir patentuotas technologijas, kurios padaro garso patirtį švaresnę ir tikresnę, be to, užtikrina geresnį našumą ir efektyvumą drąsiausiems projektams.

Techniniai duomenys

Power @ 1Ω: N/A
Power @ 2Ω: 2 X 1000W

Bridge Power @ 2Ω: N/A
Bridge Power @ 4Ω: 1 X 1200W

Frequency Response (-3dB):

10Hz ~ 20kHz

Low Pass Filter (LP -12dB/8):

80Hz

High Pass Filter (HP -12dB/8):

80Hz

Operating Voltage:

8V ~ 16V

SNR:

90dB

Input Sensitivity:

0.2 ~ 4V

Current Draw (Music):

2Ω: 89A
4Ω: 88A

Current Draw With Resistive Load (1kHz @ 12.6V):

2Ω: 178A
4Ω: 176A

Total Efficiency:

2Ω: 89%
4Ω: 90%

Damping Factor (@100Hz Rated Impedance):

200

Minimum Audio Output Impedance:

2Ω: 1 ohm
4Ω: 2 ohms

Minimum Bridge Impedance:

2Ω: 2 ohm
4Ω: 4 ohms

Recommended Fuse (Music):

100A

Recommended Battery (Music):

100Ah

Width:

5.4 in / 13,6 cm

Length:

8.9 in / 22,7 cm

Height:

2.2 in / 5,5 cm

Weight:

3.39 lb / 1,54 Kg.
