SUPRA BILINE AUDIO WHITE

SUPRA BILINE AUDIO WHITE

Kaina už 1 metrą.

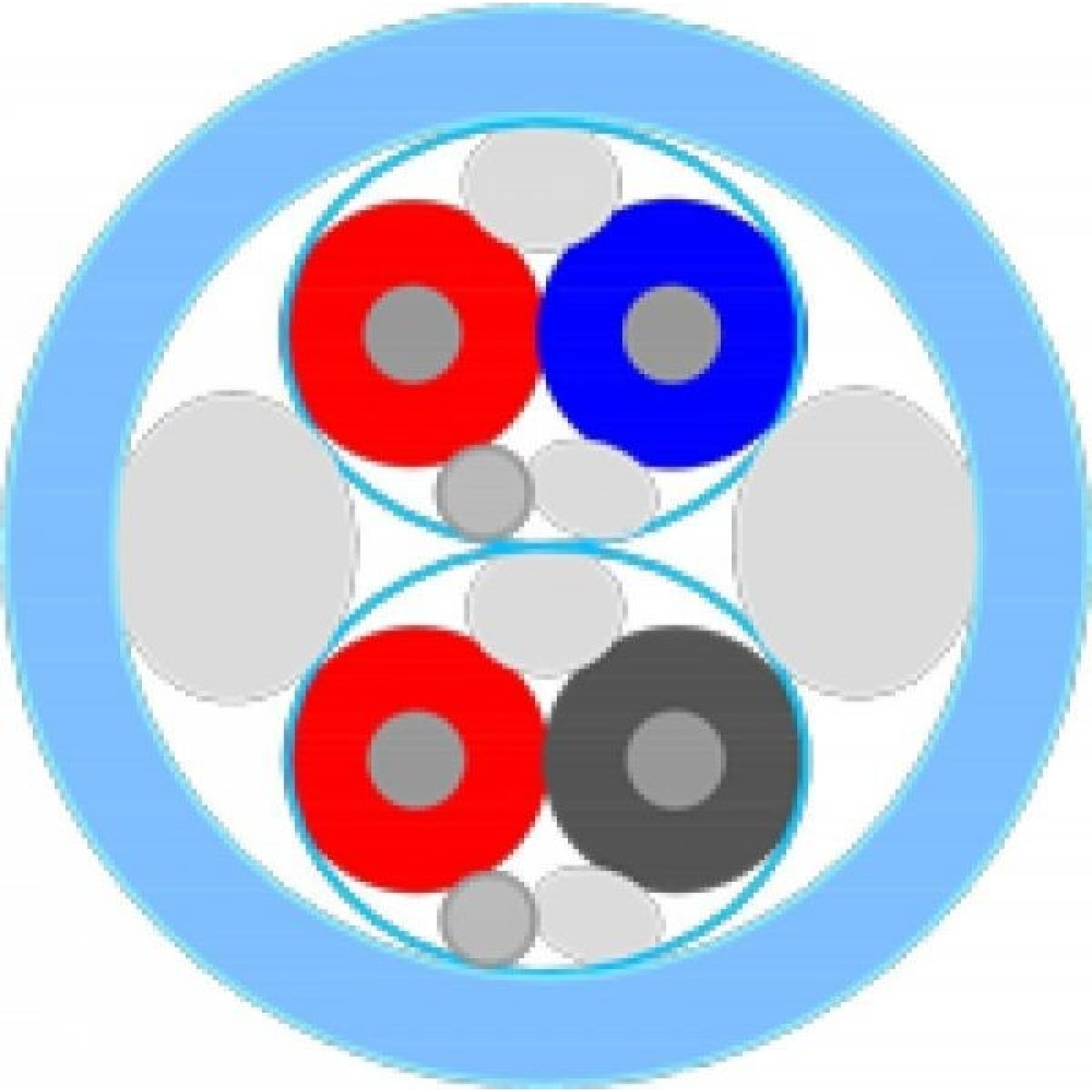

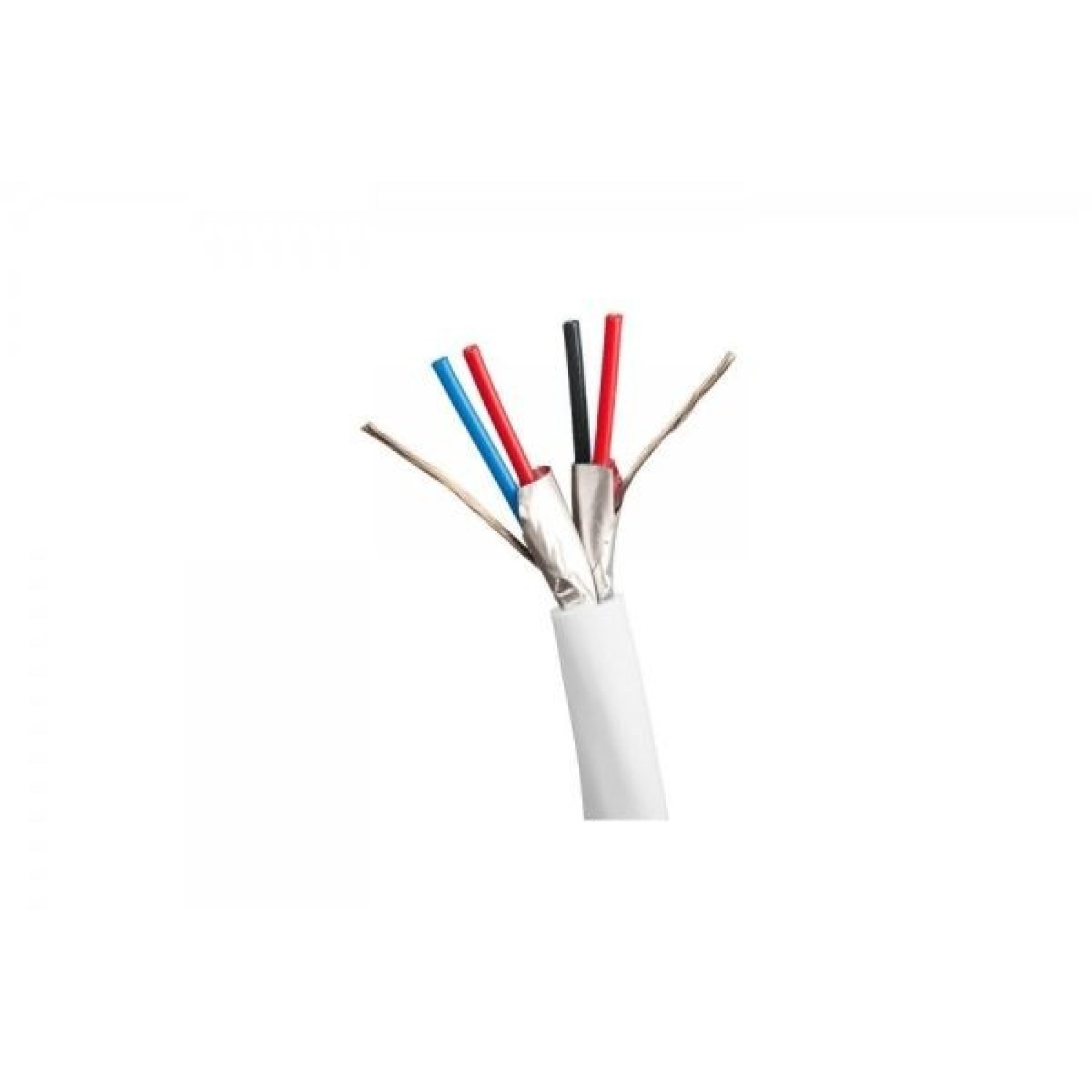

Supra BiLine – Multi-purpose individually shielded stereo analogue interconnect cable
A dual pairs individually shielded interconnect for balanced or single-ended applications. Featuring low capacitance and efficient noise rejection, maintaining signal integrity also for longer cables often required for e.g. subwoofer links.

Suggested applications; y-links from AV amplifiers with single LFE output where sub-woofer features two (“stereo”) inputs primarily intended for pre-out (left and right channel) or equipped with a single stereo Supra MP-8 mini plug from e.g. computer or MP3 to an amplifier’s analogue input.

Suitable connectors; Supra RCA-6, MP and PPX.

Warning: Y-link cabel connection must not be utilized to put stereo (two) channels together into one. Doing so, may severly damage/destroy the connected devices.

N.B. When dividing one channel output, e.g. LFE pre-put, into two inputs, increases the current load on the pre-out amplification circuitry. In some very rare cases, the pre-outputs are not capable to drive this resulting extra load and may be over-heated/damaged. Refer to the device user’s guide, retailer or the manufacturer for additional information.

Mechanical Specifications

Number of channels

2 (stereo)

Lead area

0.24 / 23

mm2 / AWG

Number of strands per lead

19

pieces

Strand dimension

Ø 0.127

mm

Lead material

Tin platen, Oxygen-free, 5N Copper

Di-electric (insulation)

PE

Shield

Aluminized PET foil

Jacket

Age and heat resistant PVC

Outer dimension

Ø 7.5

mm

Weight

56

g/m

Electrical Performance

Resistance

72

Ohm / km

Capacitance

52

pF / m

Characteristic impedance

90

Ohm

Velocity factor

0.66

x C (speed of light)
